§09 Build an Online Leaderboard for Your Godot 4 Go MMO

16 Nov 2024

We’re nearing the end of this series, having just wrapped up allowing players to eat each other and grow. But one thing we’re missing is a way for players to track their progress and see how they rank against others. It’s time to add a hiscore leaderboard! Let’s dive in and set it up.

As always, if do you want to start here without viewing the previous lesson, feel free to download the source code for release v0.08 in the official GitHub repository.

The plan

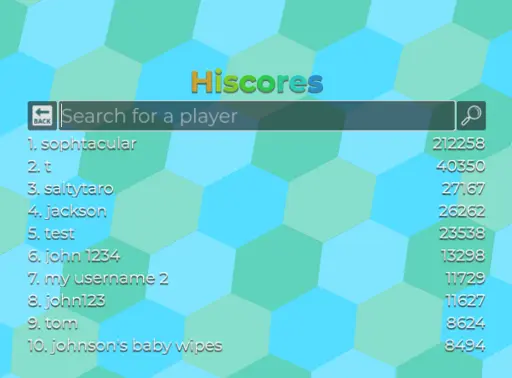

Our goal by the end of this part is to have a hiscore leaderboard that players can access from the main menu. It will look something like this (though the design will be a bit rough until we get a chance to polish everything in an upcoming part):

To pull this off, we are going to need a few things, which we will tackle in order:

A new class in Godot to format and display the leaderboard. This can be versatile enough to display both in-game and in the main menu
A player’s best score needs to be saved to the database, so a new table for player information, associated with the user who is playing
New SQL queries to save and fetch players’ hiscores
New protobuf messages to handle requesting and sending hiscores
A new state in the server to handle hiscore requests
A new state in the client to display the hiscore leaderboard and handle hiscore responses

We have a lot of work ahead of us, but we are going to use everything we have learned so far to make this happen. Let’s get started!

The leaderboard class

Similar to the Log class we created back in §03, we are going to create a new class in Godot to handle the leaderboard. The class itself won’t be responsible for fetching any information from the server, but it will be a place for us to store data into and have it display in a table format. This means we can put it into the game straight away to keep track of live, current scores, and then later we will use it in the main menu to display players’ best scores.

Create a new folder at res://classes/hiscores/
Right-click the new hiscores folder and select Create new… and then Scene
Enter hiscores as the name of the scene
Choose ScrollContainer as the root node
Click OK

We will set the scroll container to take up the screen’s entire area, but when we add it to other scenes, we can resize it as needed. To do this, simply use the Full Rect anchor preset at the top of the scene editor when you have the root node selected.

Also ensure the Shrink Begin and Expand options are selected for the Vertical container sizing option in the inspector (under “Layout”), or simply use the handy Sizing settings button at the top of the scene editor to set it. This will allow the hiscore board to be resized and positioned correctly when we add it to other scenes.

Now go ahead and add the following nodes so that the scene tree looks like this:

ScrollContainer - called Hiscores
- VBoxContainer
  - HBoxContainer
    - Label - called Name
    - Label - called Score

Right now, everything is all clumped together, so let’s fix the layout.

Select the VBoxContainer node and choose the Fill and Expand options for both horizontal and vertical alignment in the Container Sizing section of the inspector (under “Layout”), or simply use the handy Sizing settings button at the top of the scene editor.
For the HBoxContainer, simply choose Shrink Begin for the Vertical container size, and don’t change anything else. This will force each row to stay the same height, one after the other.
The Name label should have Fill and Expand selected for the horizontal alignment, so that it pushes the adjacent score label to the right. Also set the Custom minimum size’s x value (also under “Layout” in the inspector) to 150px to give it a bit of space to start out.
Finally, set the Score label to Shrink End for the horizontal alignment, so that it doesn’t take up any more space than it needs to.

If you enter some dummy data into the labels, and duplicate the HBoxContainer a few times, you should see something like this:

Remove the duplicate HBoxContainer nodes if you added them, and remember to save the scene. Let’s add a new script at res://classes/hiscores/hiscores.gd and attach it to the root node.

/client/classes/hiscores/hiscores.gd

class_name Hiscores
extends ScrollContainer

var _scores: Array[int]

@onready var _vbox := $VBoxContainer as VBoxContainer
@onready var _entry_template := $VBoxContainer/HBoxContainer as HBoxContainer

func _add_hiscore(name: String, score: int) -> void:
    _scores.append(score)
    _scores.sort()
    var pos := len(_scores) - _scores.find(score) - 1 # -1 to keep real entries above the template

    var entry: HBoxContainer = _entry_template.duplicate()
    var name_label: Label = entry.get_child(0)
    var score_label: Label = entry.get_child(1)

    _vbox.add_child(entry)

    _vbox.move_child(entry, pos)

    name_label.text = name
    score_label.text = str(score)

    entry.show()

So far, the script isn’t too complicated. We are internally keeping track of scores in an array, which we sort each time a new score is added. This ensures that the hiscore entries are added in the correct order. The private _add_hiscore function is responsible for doing just that: it takes a name and a score, adds it to the internal array, finds the position in the scene tree where it should be inserted, then puts a modified copy of the entry template there.

We will not be calling this function externally, however, as we are going to instead call something more versatile: set_hiscore.

func set_hiscore(name: String, score: int) -> void:
    remove_hiscore(name)
    _add_hiscore(name, score)

This function will remove any existing hiscore entry for the given name, then add the new one. This way, we can update a player’s score without having to worry about duplicates. But we obviously need to add the remove_hiscore function as well:

func remove_hiscore(name: String) -> void:
    for i in range(len(_scores)):
        var entry: VBoxContainer = _vbox.get_child(i)
        var name_label: Label = entry.get_child(0)

        if name_label.text == name:
            _scores.remove_at(len(_scores) - i - 1)

            entry.free()
            return

This very simple function iterates through the hiscore entries, finds the one with the matching name, removes it from the internal array, then removes it from the scene tree.

Let’s test this out by adding our new hiscores scene to the Connected scene somewhere. I added it to the bottom of the Connected scene’s VBoxContainer, just below the Log node.

Note that, unlike the Log node, we need to click and drag the Hiscores scene from the file system to the scene tree to add the entire scene, along with its children. If you simply try and add a new Hiscores node, it will not come with any of the children we set up in the scene editor, therefore it will not work. We were able to get away with this for the Log node because it was a single node with no children.

Also be sure to set the Custom Minimum Size’s y value (under “Layout” in the inspector) to 200px to allow some entries to be visible.

Then, I added the following test code to the _ready function in res://states/connected/connected.gd:

/client/states/connected/connected.gd

func _ready() -> void:
    # ...

    var _hiscores := $UI/VBoxContainer/Hiscores as Hiscores
    _hiscores.set_hiscore("Bob Barker", 10000)
    _hiscores.set_hiscore("Adam Sandler", 5000)
    _hiscores.set_hiscore("Tristan", 5001)

Now, when I run the game, I should expect to see “Bob Barker” at the top of the hiscore list, followed by “Tristan” and then “Adam Sandler”, which is half what I see. I also see the placeholder text at the bottom of the list, which obviously isn’t what we want.

Let’s fix that by simply clicking the 👁️ icon to the right of the HBoxContainer template in the scene editor of the Hiscores scene. This will hide the placeholder entry and make everything right with the world.

You might instead want to keep them visible while you are working on the scene, and hide them programmatically, so for that, feel free to add the following to the _ready function in res://classes/hiscores/hiscores.gd:

/client/classes/hiscores/hiscores.gd

func _ready() -> void:
    _entry_template.hide()

Make sure to remove the test code from the _ready function in res://states/connected/connected.gd, and remove the Hiscores scene from the Connected scene, as that was just a test. Let’s actually add it to the game now.

Adding live scores to the game

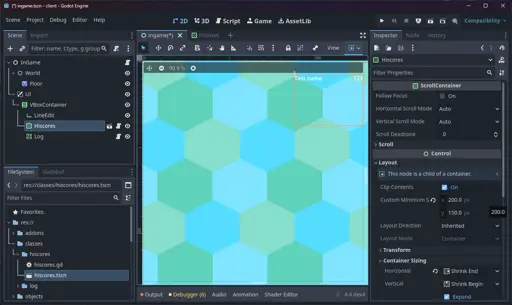

We are already able to drop in our new Hiscores scene to our InGame state scene, but first we will need a little restructuring to make it easier to manage the positioning of the elements. Restructure the UI canvas layer in the InGame scene so that it looks like this:

UI - called UI
- VBoxContainer
  - LineEdit
  - Hiscores
  - Log

Choose the Full Rect anchor preset for the VBoxContainer node
Choose the Shrink End container sizing option for both the Vertical and Horizontal options for the Hiscores node
Set the Custom Minimum Size’s x value to 200px for the Hiscores node
Set the Custom Minimum Size’s y value to 150px for the Hiscores node

Now, we will have broken our ingame.gd script by moving the LineEdit and Log nodes under the VBoxContainer, so let’s fix that as well as add a reference to our new Hiscores node.

/client/states/ingame/ingame.gd

@onready var _line_edit := $UI/VBoxContainer/LineEdit as LineEdit
@onready var _log := $UI/VBoxContainer/Log as Log
@onready var _hiscores := $UI/VBoxContainer/Hiscores as Hiscores

Now, whenever we update an actor’s mass, we should also update the hiscore list. Luckily we have a function called _set_actor_mass already, so let’s add to that:

/client/states/ingame/ingame.gd

func _set_actor_mass(actor: Actor, new_mass: float) -> void:
    # ...
    _hiscores.set_hiscore(actor.actor_name, roundi(new_mass))

Now, whenever an actor’s mass changes, the hiscore list will update accordingly. But we also need to remove the actor from the hiscores when they are removed from the game, so go ahead and add a similar line to the _remove_actor function:

/client/states/ingame/ingame.gd

func _remove_actor(actor: Actor) -> void:
    # ...
    _hiscores.remove_hiscore(actor.actor_name)

Now, when we run the game, we should see the hiscore list updating as we eat things, and it should dynamically sort itself as different players overtake each other.

There is just one problem, which is that the player’s hiscore won’t be added when they first join the game - only when they first eat something. Harder to notice is the fact that radius updates from the server (e.g. if an actor’s radius is mismatched from the client) won’t update the hiscore list either. Both of these are due to the fact that we are setting the actor’s radius directly rather than via the _set_actor_mass function. Luckily, it is easy to fix, since we just need to use the _rad_to_mass function to calculate the mass from the radius, then call _set_actor_mass with the result.

/client/states/ingame/ingame.gd

func _add_actor(actor_id: int, actor_name: String, x: float, y: float, radius: float, speed: float, is_player: bool) -> void:
    var actor := Actor.instantiate(actor_id, actor_name, x, y, radius, speed, is_player)
    _world.add_child(actor)
    _set_actor_mass(actor, _rad_to_mass(radius))
    # ...

func _update_actor(actor_id: int, x: float, y: float, direction: float, speed: float, radius: float, is_player: bool) -> void:
    var actor := _players[actor_id]
    _set_actor_mass(actor, _rad_to_mass(radius))
    # ...

That should be everything we need to add live hiscores to the game. Here’s what it looks like now:

Now, let’s tackle stage 2 of our plan: saving the player’s best score to the database.

Saving players in the database

We are going to need a new table in the database to store player information, including their best score. Later on, we will want to save more information, like when we add character customization, but for now, we will just save the player’s name and their best score.

It’s been a while since we’ve done this; we first set up the database in §05, so let’s refresh our memory on how to do this.

Open up the schema.sql config file in our /server/internal/db/config/ directory. Recall this is where we give the definition of all the tables we want to create in our database. Add the following to the bottom of the file:

/server/internal/db/config/schema.sql

CREATE TABLE IF NOT EXISTS players (
    id INTEGER PRIMARY KEY AUTOINCREMENT,
    user_id INTEGER NOT NULL,
    name TEXT NOT NULL UNIQUE,
    best_score INTEGER NOT NULL DEFAULT 0,
    FOREIGN KEY (user_id) REFERENCES users(id)
);

This will create a table called players with the following structure:

Column Name	Data Type	Description
id	int	A unique identifier for the player
name	string	The name of the player
best_score	int	The player’s best score of all time
user_id	int	A reference to the user who owns this player

Including the user_id column will allow us to easily associate a player with a user, which can be useful for things like finding the player a particular user is playing as, or for deleting all of a user’s players when they delete their account, etc. We probably won’t use it in this series, but it’s good to have it there for future reference.

Now, if we simply re-run the server, it will automatically create the table for us, but no data will be added to it. We obviously have a few users in the database at this point, but none of them will magically have a player associated with them. Typically, manipulating data after the fact, especially on a production server, is done with what’s called a “migration”. sqlc does not support migrations, and I personally think they are a bit overkill for a small project like this, so we will simply delete the database and start fresh. If you are working on a production server, you could hand-write a migration script to populate the players table with the necessary data, or check if a user has a player associated with them when they log in, and create one if they don’t.

To delete the database, simply remove the db.sqlite file in the /server/cmd/ directory, then re-run the server. This will create a new, empty database for us to work with.

To save a player to the database, we will need to add a new SQL query to the queries.sql file in the /server/internal/db/ directory. This query will insert a new player into the players table, and return the new player to us.

/server/internal/db/queries.sql

-- name: CreatePlayer :one
INSERT INTO players (
    user_id, name
) VALUES (
    ?, ?
)
RETURNING *;

This query is very simple, since we only need to specify the player’s user ID and name. All other fields have default values, so we don’t need to worry about them.

Run the following command from the root of the project to generate a new Go function called CreatePlayer in our db package:

sqlc generate -f server/internal/server/db/config/sqlc.yml

Now, we can actually use this query to create a new player when a new user registers. Let’s revisit the Connected state and find the handleRegisterRequest function. We will create the player right near the end of the function, after we create the user and immediately before we send the Ok packet back to the client.

/server/internal/server/states/connected.go

func (c *Connected) handleRegisterRequest(senderId uint64, message *packets.Packet_RegisterRequest) {
    // ...

    _, err = c.queries.CreatePlayer(c.dbCtx, db.CreatePlayerParams{
        UserID: user.ID,
        Name:   message.RegisterRequest.Username,
    })

    if err != nil {
        c.logger.Printf("Failed to create player for user %s: %v", username, err)
        c.client.SocketSend(genericFailMessage)
        return
    }

    // ...
}

You will probably have not declared the user variable, since we weren’t doing anything with the result of the CreateUser response, we simply threw it away before. But now we need its ID to create the players, so instead of the line _, err = c.db.CreateUser(...), simply change it to user, err := c.db.CreateUser(...).

Also, note we are using the message.RegisterRequest.Username as the player’s name. This is the string that the client sent to the server, before we validated it and transformed it to lowercase. This is ideal for the player name, since it may have stylistic capitalization that the user wants to keep, which is fine for the player name, but not for the username.

Tracking hiscores in the database

Now that we have a way to create players in the database, we need to update the player’s best score whenever they eat something. We will need a new query to update the player’s best score, and we will need to call this query whenever a player’s mass changes.

But we only want to update the player’s best score if the new mass is greater than the current best score. So how do we get that? We could query the database every time we want to update the player’s best score, but that seems like a lot of unnecessary work. Instead, we can keep track of the player’s best score in the objects.Player struct, which is retrieved from the database when the player logs in. This way, we can simply compare the new mass to the player’s best score, and only update the database if the new mass is greater.

So let’s add some new fields to the objects.Player struct to help keep track of the player’s best score.

/server/internal/server/objects/gameObjects.go

type Player struct {
    // ...
    DbId      int64
    BestScore int64
}

We are adding a new field called DbId, which will store the player’s ID in the database. This will be useful for making queries that require the player’s ID, like updating the player’s best score. We are also adding a new field called BestScore, which is more self-explanatory.

We will also need a new query to get a player based on their ID (we limited the query to one result, since we are only ever going to get one player with a given ID).

/server/internal/db/queries.go

-- name: GetPlayerByUserID :one
SELECT * FROM players
WHERE user_id = ? LIMIT 1;

Remember to compile the queries again as we did above, before moving on to the next step.

Now, when we handle the login request in the Connected state, let’s retrieve the player’s best score from the database and store it in the Player struct we pass to the InGame state. So enter the following code at the end of the handleLoginRequest function, after we send the Ok response to the client.

/server/internal/server/states/connected.go

func (c *Connected) handleLoginRequest(senderId uint64, message *packets.Packet_LoginRequest) {
    // ...
    player, err := c.queries.GetPlayerByUserID(c.dbCtx, user.ID)

    if err != nil {
        c.logger.Printf("Error getting player for user %s: %v", username, err)
        c.client.SocketSend(genericFailMessage)
        return
    }

    c.client.SetState(&InGame{
        player: &objects.Player{
            Name:      player.Name,
            DbId:      player.ID,
            BestScore: player.BestScore,
        },
    })
}

Now, onto actually updating the player’s best score. We will need a new query to update the player’s best score, and we will need to call this query whenever a player’s mass changes.

/server/internal/db/queries.go

-- name: UpdatePlayerBestScore :exec
UPDATE players
SET best_score = ?
WHERE id = ?;

This is a very simple query to update the best_score field of a player with the given ID. We use :exec to denote the fact that this query doesn’t return any rows.

Now, we need to call this query whenever we eat something, but only if the resulting mass is greater than the player’s current best score. To handle that’s let’s make a new function in the InGame state called syncPlayerBestScore.

/server/internal/server/states/ingame.go

func (g *InGame) syncPlayerBestScore() {
    currentScore := int64(math.Round(radToMass(g.player.Radius)))
    if currentScore > g.player.BestScore {
        g.player.BestScore = currentScore
        err := g.client.DbTx().Queries.UpdatePlayerBestScore(g.client.DbTx().Ctx, db.UpdatePlayerBestScoreParams{
            ID:        g.player.DbId,
            BestScore: g.player.BestScore,
        })
        if err != nil {
            g.logger.Printf("Error updating player best score: %v", err)
        }
    }
}

Most of the time, we don’t really care about the result of the query, or when exactly it runs, so we can just sort of “fire and forget” it with a goroutine. We will do this at the end of the handleSporeConsumed and handlePlayerConsumed functions:

/server/internal/server/states/ingame.go

func (g *InGame) handleSporeConsumed(senderId uint64, message *packets.Packet_SporeConsumed) {
    // ...
    go g.syncPlayerBestScore()
}

func (g *InGame) handlePlayerConsumed(senderId uint64, message *packets.Packet_PlayerConsumed) {
    // ...
    go g.syncPlayerBestScore()
}

The only time we really care about the result of the query is when the player leaves the game, because we want to make sure the player’s best score is updated before they leave. So we will call the syncPlayerBestScore function directly in the OnExit function of the InGame state.

/server/internal/server/states/ingame.go

func (g *InGame) OnExit() {
    // ...
    g.syncPlayerBestScore()
}

Here’s an example of where it would be nice to be managing our database contexts a bit better, because this would be a great place to implement some retry logic in case the query fails. But for now, we just log the error and accept that the player’s best score may not be updated in the database if the query fails.

Now, when we run the game, we should see the player’s best score updating in the database as they eat things. We can verify this by running the following query on the database:

SELECT * FROM players;

I won’t go into too much detail on how to do that here, as there are many resources online that can help with that, but I am using a VS Code extension called SQLite to run the query directly from the editor.

So that ticks off stage 3 of our plan. Now, let’s move on to stage 4: adding protobuf messages to handle requesting and sending hiscores.

Adding new protobuf messages

For now, we need a way for the client to request the hiscore leaderboard from the server, and for the server to respond with the hiscore leaderboard. The former is dead simple since it requires no payload, and the latter can be achieved using protobuf’s repeated field type, similarly to what you would have done if you followed the optional optimization at the end of §07.

In case you didn’t follow that section, a repeated field is just a way of stuffing multiple instances of a message into a single message. This is useful for things like a list of hiscores, where each hiscore is a message with a name and a score.

Let’s define the new messages in the packets.proto file in the /shared/ directory.

/shared/packets.proto

message HiscoreBoardRequestMessage { }
message HiscoreMessage { uint64 rank = 1; string name = 2; uint64 score = 3; }
message HiscoreBoardMessage { repeated HiscoreMessage hiscores = 1; }

message Packet {
    // ...
    oneof msg {
        // ...
        HiscoreBoardRequestMessage hiscore_board_request = 14;
        HiscoreMessage hiscore = 15;
        HiscoreBoardMessage hiscore_board = 16;
    }
}

So the idea is that the client will send a HiscoreBoardRequestMessage to the server, when it wants to browse the hiscore leaderboard. The server will respond with a HiscoreBoardMessage, which contains a list of HiscoreMessage messages, each of which contains a rank, a name, and a score retrieved from the database.

Let’s go ahead and define helper functions for the only message the server needs to send in our util.go file:

/server/pkg/packets/util.go

func NewHiscoreBoard(hiscores []*HiscoreMessage) Msg {
    return &Packet_HiscoreBoard{
        HiscoreBoard: &HiscoreBoardMessage{
            Hiscores: hiscores,
        },
    }
}

It would be good to handle these messages in a different state, since this logic doesn’t really fit in to either the Connected or InGame states. So let’s create a new state called BrowsingHiscores to handle this.

Adding a new server state

It’s been a while since we’ve done this, so here’s the rundown on how to add a new state to the server: First, create a new file in the /server/internal/server/states/ directory called browsingHiscores.go. We will first lay out the methods required to implement the ClientStateHandler interface that we defined way back in §04

/server/internal/server/states/browsingHiscores.go

package states

import (
    "context"
    "fmt"
    "log"

    "server/internal/server"
    "server/internal/server/db"
    "server/pkg/packets"
)

type BrowsingHiscores struct {
    client  server.ClientInterfacer
    logger  *log.Logger
    queries *db.Queries
    dbCtx   context.Context
}

func (b *BrowsingHiscores) Name() string {
    return "BrowsingHiscores"
}

func (b *BrowsingHiscores) SetClient(client server.ClientInterfacer) {
    b.client = client
    loggingPrefix := fmt.Sprintf("Client %d [%s]: ", client.Id(), b.Name())
    b.logger = log.New(log.Writer(), loggingPrefix, log.LstdFlags)
    b.queries = client.DbTx().Queries
    b.dbCtx = client.DbTx().Ctx
}

func (b *BrowsingHiscores) OnEnter() {
}

func (b *BrowsingHiscores) HandleMessage(senderId uint64, message packets.Msg) {
}

func (b *BrowsingHiscores) OnExit() {
}

(we know we are going to use the database a lot in this state, so I have gone ahead and set up the queries and dbCtx fields in the SetClient function, much like we did in the Connected state back in §05)

Now, let’s see if we can listen for a HiscoreBoardRequestMessage in the Connected state, and switch to the BrowsingHiscores state when we receive one.

/server/internal/server/states/connected.go

func (c *Connected) HandleMessage(senderId uint64, message packets.Msg) {
    switch message := message.(type) {
    // ...
    case *packets.Packet_HiscoreBoardRequest:
        c.handleHiscoreBoardRequest(senderId, message)
    }
}

func (c *Connected) handleHiscoreBoardRequest(senderId uint64, _ *packets.Packet_HiscoreBoardRequest) {
    c.client.SetState(&BrowsingHiscores{})
}

Next, in the OnEnter function of the BrowsingHiscores state, let’s send a HiscoreBoardMessage back to the client with some dummy data, just to make sure everything is working.

/server/internal/server/states/browsingHiscores.go

func (b *BrowsingHiscores) OnEnter() {
    b.client.SocketSend(packets.NewHiscoreBoard(
        []*packets.HiscoreMessage{
            {Rank: 5, Name: "Bob Barker", Score: 100},
            {Rank: 4, Name: "Tristan", Score: 250},
            {Rank: 3, Name: "Adam Sandler", Score: 1000},
        },
    ))
}

That should be enough to get us started and test that the client can request and receive the hiscore leaderboard from the server. Let’s move on to the client side.

Adding a new client state

We will need a new state in the client to handle browsing the hiscore leaderboard. This is where it will be able to do things like display the leaderboard, search for a player, etc.

First, create a new directory at res://states/browsing_hiscores/ and create a new scene called browsing_hiscores.tscn of type Node.

Before we forget, let’s go ahead and register the new state with the game manager:

/client/game_manager.gd

enum State {
    # ...
    BROWSING_HISCORES,
}

var _states_scenes: Dictionary[State, String] = {
    # ...
    State.BROWSING_HISCORES: "res://states/browsing_hiscores/browsing_hiscores.tscn",
}

Now, we should be able to switch to the BrowsingHiscores state from the Connected state. Let’s test this by adding a button to the Connected scene that sends a HiscoreBoardRequestMessage to the server.

Add a new button to the connected scene, right next to the Register button, call it HiscoresButton and set the text to “Hiscores”.

Now, let’s hook the button up to switch to the BrowsingHiscores state when it is pressed. Add the following code to the connected state script:

/client/states/connected/connected.gd

@onready var _hiscores_button := $UI/VBoxContainer/HBoxContainer/HiscoresButton as Button

func _ready() -> void:
    # ...
    _hiscores_button.pressed.connect(_on_hiscores_button_pressed)

func _on_hiscores_button_pressed() -> void:
    GameManager.set_state(GameManager.State.BROWSING_HISCORES)

Now, when we run the game, we should be able to press the Hiscores button in the main menu, and then get met with a blank screen. This is because we haven’t actually added anything to the BrowsingHiscores scene yet. Let’s add a hiscore leaderboard to the scene, and then add a script to send the HiscoreBoardRequestMessage to the server when the scene is entered, and populate the leaderboard with the response.

First, add a CanvasLayer node to the browsing_hiscores.tscn scene, and name it UI. Then, click and drag our res://classes/hiscores/hiscores.tscn scene into the UI node to add it to the scene tree. This will add the hiscore leaderboard to the scene, ready to be populated with data.

Attach a script called browsing_hiscores.gd to the root node of the browsing_hiscores.tscn scene.

/client/states/browsing_hiscores/browsing_hiscores.gd

extends Node

const packets := preload("res://packets.gd")

@onready var _hiscores := $UI/Hiscores as Hiscores

func _ready() -> void:
    WS.packet_received.connect(_on_ws_packet_received)

    var packet := packets.Packet.new()
    packet.new_hiscore_board_request()
    WS.send(packet)

func _on_ws_packet_received(packet: packets.Packet) -> void:
    if packet.has_hiscore_board():
        _handle_hiscore_board_msg(packet.get_hiscore_board())

func _handle_hiscore_board_msg(hiscore_board_msg: packets.HiscoreBoardMessage) -> void:
    for hiscore_msg: packets.HiscoreMessage in hiscore_board_msg.get_hiscores():
        var name := hiscore_msg.get_name()
        var rank_and_name := "%d. %s" % [hiscore_msg.get_rank(), name]
        var score := hiscore_msg.get_score()
        _hiscores.set_hiscore(rank_and_name, score)

Now, when we run the game, we should be able to press the Hiscores button in the main menu, and then see the hiscore leaderboard populate with the dummy data we sent from the server.

We can also see the server was obviously able to switch to the BrowsingHiscores state:

2024/11/18 07:39:56 New client connected from [::1]:57389
Client 1: 2024/11/18 07:39:56 Switching from state None to Connected
Client 1: 2024/11/18 07:39:58 Switching from state Connected to BrowsingHiscores

Great, we are almost there! Now we just need to actually fetch the top 10 hiscores from the database whenever we receive a HiscoreBoardRequestMessage in the BrowsingHiscores state on the server, and send that data back to the client.

Let’s add a new query to the queries.sql file to get the top hiscores from the database.

/server/internal/db/config/queries.sql

-- name: GetTopScores :many
SELECT name, best_score
FROM players
ORDER BY best_score DESC
LIMIT ?
OFFSET ?;

This will simply select ? rows from the players table, ordered by best_score from best to worst. We use another parameter to offset the results, so we can easily paginate the results, or get 10 hiscores from a certain rank, etc. We won’t be using this feature quite yet, but we are adding it now to make it easier to add later.

After compiling the queries, we can use this in the BrowsingHiscores state:

/server/internal/server/states/browsingHiscores.go

func (b *BrowsingHiscores) OnEnter() {
    const limit int64 = 10
    const offset int64 = 0

    topScores, err := b.queries.GetTopScores(b.dbCtx, db.GetTopScoresParams{
        Limit:  limit,
        Offset: offset,
    })
    if err != nil {
        b.logger.Printf("Error getting top %d scores from rank %d: %v", limit, offset+1, err)
        b.client.SocketSend(packets.NewDenyResponse("Failed to get top scores - please try again later"))
        return
    }

    hiscoreMessages := make([]*packets.HiscoreMessage, 0, limit)
    for rank, scoreRow := range topScores {
        hiscoreMessage := &packets.HiscoreMessage{
            Rank:  uint64(rank) + uint64(offset) + 1,
            Name:  scoreRow.Name,
            Score: uint64(scoreRow.BestScore),
        }
        hiscoreMessages = append(hiscoreMessages, hiscoreMessage)
    }

    b.client.SocketSend(packets.NewHiscoreBoard(hiscoreMessages))
}

It looks like a lot, but a good chunk of it is error handling and constructing the hiscore messages to stuff inside the response. If you run the game now, you should see some real hiscores in the hiscore leaderboard when you press the Hiscores button in the main menu.

Homework

Just one more thing: there’s currently no way to go back to the main menu from the hiscores screen. See if you can figure out how to add a button to the hiscores screen that sends a message to the server to switch back to the Connected state, and switch state on the client as well. We will go over the solution in the next post.

Conclusion

So that’s it for this post! We have successfully added live hiscores to the game, saved the player’s best score to the database, made a way to request, retrieve, and receive that information.

In the next post, we will make the game a bit more interesting by making players drop spores and lose mass over time, and also provide a way to search the leaderboard by player name. Hopefully it will be a shorter post than this one!

If you have any questions or feedback, I’d love to hear from you! Either drop a comment on the YouTube video or join the Discord to chat with me and other game devs following along.
